32-inch monitor with 4K UHD resolution for Magnetic Resonance Imaging (MRI).

  • Shielded against magnetic fields
  • Minimized impacts to magnetic fields
  • Luminance stability system
  • Color matched


Monitor - LX3240-MR-Compatibility

MRI Compatibility

The LX3240-MR is built using special materials to minimize impact on magnetic fields and resonators. Furthermore the monitor is shielded against strong magnetic environments up to 100 mT, allowing it to be placed in proximity to an MRI scanner.
Monitor - LX3240-MR - Picture Reproduction

Perfect Picture Reproduction

The TFT panel used enables distortion-free image geometry, a very large viewing angle and high luminance. The monitor provides a flicker-free picture, even at low refresh rates for meeting even the strictest ergonomic requirements.
Monitor - LX3240-MR - Stability

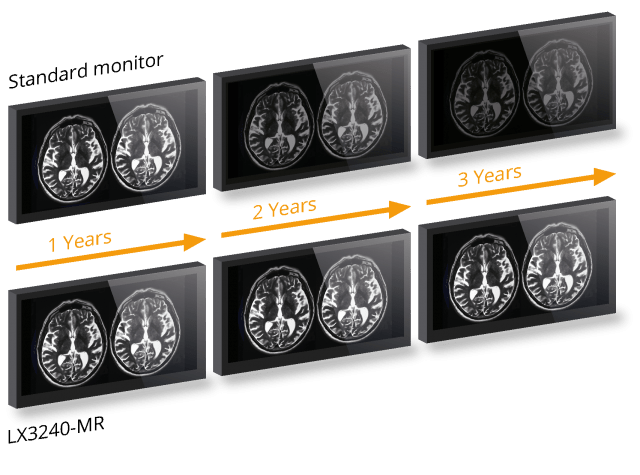

Constant Brightness

The LX3240-MR’s fully automated stability system keeps the brightness constant in accordance with medical standards such as DICOM® or Gamma 2.2. The monitor is also equipped with an internal backlight sensor which ensures luminance stays consistent.
Monitor - LX3240-MR - Connection Options

Flexible Connection Options

The LX3240-MR has flexible options to connect and display video sources, such as 4K UHD (3840 x 2160) and Full HD (1920 x 1080):
• DisplayPort™ 4K UHD input
• DisplayPort™ FHD input (upscaling Full HD to UHD)
• Two HDMI® connectors supporting DVI signals (upscaling Full HD to UHD)

Monitor - LX3240-MR - Presets

Five Practice-Oriented Preset Modes

The LX3240-MR is calibrated at the factory with total of five practice-oriented preset modes available. This calibration data allows the monitor to be easily adapted to the respective application and local lighting conditions.
In addition, special application requests from service personnel on site can be taken into account, such as color adjustment or adapting to ambient brightness.
All presets are color matched, so the color impression remains consistent between each unit across all gray scale levels.
Monitor - LX3240-MR - No Picture Delay

Work Safely with Minimal Picture Delay

Images are displayed on the screen in real time, so that the operating surgeon can see all processes directly and without delay on the monitor.
Monitor - LX3240-MR - Sensor

Instant Viewing

The built-in backlight sensor ensures that the screen brightness is quickly stabilized when the system is started, so that the image on the monitor is available within a short time.
Monitor - LX3240-MR - VESA

Installation on a VESA Mount

Compliance with the VESA standard enables attachment to existing mounting accessories such as ceiling suspensions.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.



Model VariationsLX3240-MR: without stand
Cabinet ColorBlack (RAL 7021)
Certifications & Standards (Please contact EIZO for the latest information)CE / UKCA (Medical Device), IEC/EN60601-1, CAN/CSA C22.2 No. 60601-1, ANSI/AAMI ES60601-1, EN60601-1-2 Class B, FCC-B, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details)AC adapter + cable (15 m), Utility Disk (PDF Instructions for Use)


TypeTFT Color-LCD Panel (IPS)
Size80 cm / 31.5”
Native Resolution3840 x 2160 (16:9 apect ratio)
Viewable Image Size (H x V)697.3 x 392.2 mm
Pixel Pitch0.181 x 0.181 mm
Display Colors10-bit colors: 1.07 billion colors
Viewing Angles (H / V, typical)178° / 178°
Brightness (typical)1000 cd/m²
Recommended Brightness for Calibration400 cd/m²
Contrast Ratio (typical)1300:1
Response Time (typical)14 ms (midtone)
Color Gamut (typical)sRGB

Video Signals

Input TerminalsDisplayPort™ (4K UHD), DisplayPort™ (Full HD), HDMI® (DVI signal Full HD) x 2
Digital Scanning Frequency (H / V)131.3 kHz / 60 Hz


UpstreamUSB 2.0: Type-B (communication channel to host)
DownstreamUSB 2.0: Type-A x 2


Power RequirementsAC adapter input: 100-240 V: 50-60 Hz
Monitor input: 24 VDC, 6 A
Maximum Power Consumption155 W
Power Save Mode20 W (DMPM mode)
Power ManagementDMPM
Power OutputDC 5V, 1A (Hirose)

Features & Functions

MiscellaneousCal-Switch, resistance to magnetic fields up to 100 mT
SensorBacklight sensor
OSD LanguagesEnglish

Environmental Requirements

MiscellaneousMaximum Magnetic Field:
Monitor: 100 mT
External power supply: 3 mT
Degree of ProtectionIP20

Physical Specifications

Net Weight17.2 kg +/- 1 kg
Hole Spacing (VESA Standard)100x100 mm and 200x100 mm, M4, depth 5-10 mm
