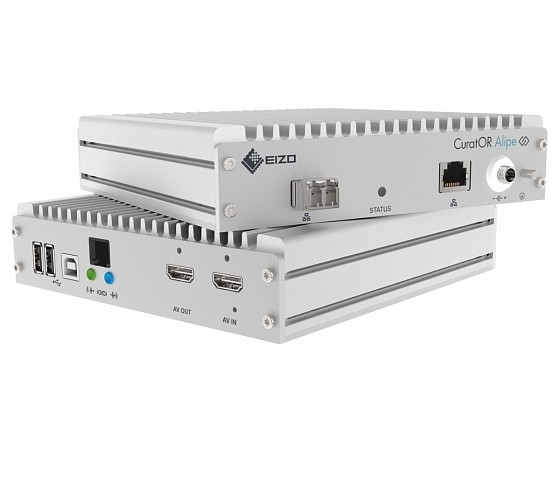

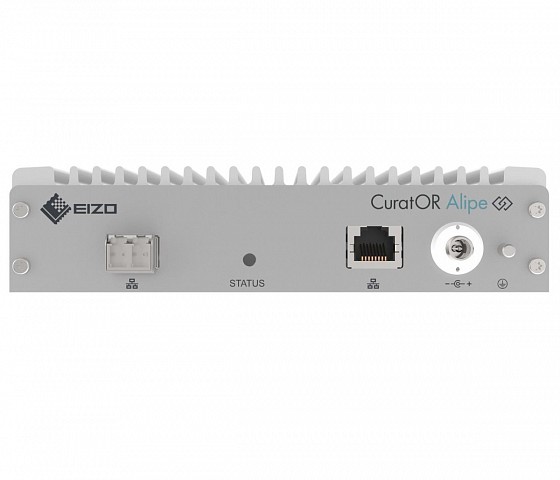

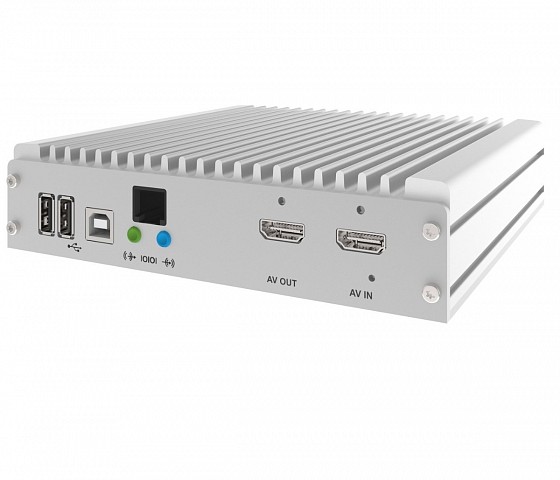

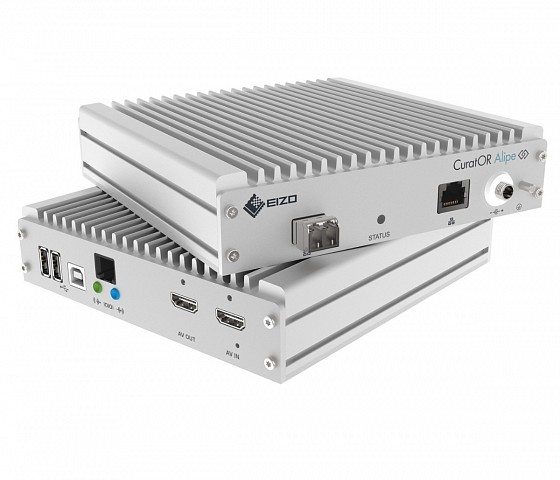

TIP0810

With TIP0810, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

Uncompressed, loss-free data transmission of 10 Gbit/s
Transmission with zero latency, for better hand-eye coordination
Multiple views on a monitor possible through one signal
Passive cooling

Features

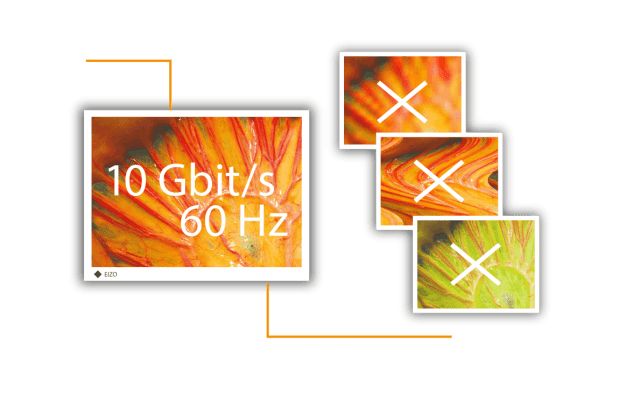

Lossless Transmission up to 4K

TIP0810 transmits data up to 4K UHD resolution (3840 x 2160) at 60 Hz with speeds as high as 10 Gbps. The device achieves this without compression, ensuring optimum image quality.

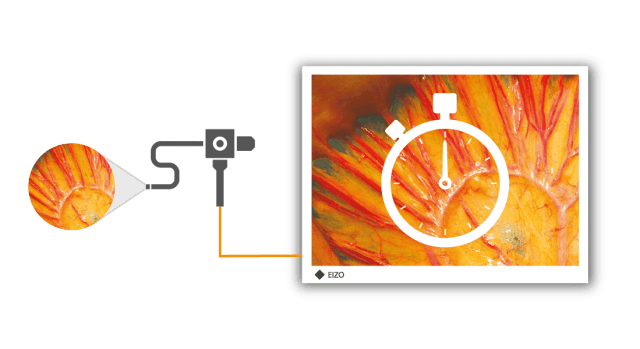

Instantaneous Image Viewing

Images are transmitted without any visual delay, offering a seamless hand-eye coordination experience for the attending physician. He/she receives direct visual response to his/her actions, for example during endoscopic interventions.

Accessory - TIP - all - Extended Distances

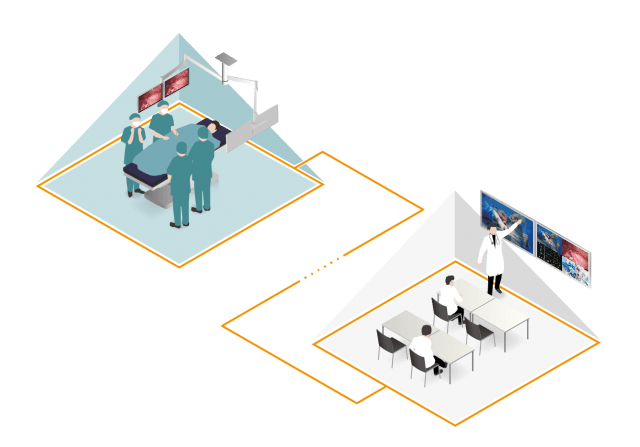

Extensive Transmission Distance

Data is transmitted via fiber-optic cable, enabling transmission distances of up to 10 kilometers. As a result, not only separate rooms, but entire buildings can be linked to one another, with image data and audio seamlessly transmitted between them. This is useful for transmitting data within and outside of the OR, as well as to conference rooms, lecture halls, and other locations.

Universal Application

The TIP0810 can be used for both encoding and decoding data. This simplifies installation and saves on time and labor costs associated with storage and maintenance of the entire system.

Scalable System

The TIP0810 is fully compatible with the IP Transceiver TIP0210-DVI and TIP0410. This makes integration scalable and cost-efficient. Furthermore, existing installations can be extended with the TIP0810 to support 4K modalities.

Accessory - TIP - all - Mouse and Keyboard

Remote Operation Possible

IP-based data transmission enables the use of the same network cables for the transmission of all information, whether image, audio, video, or control of a keyboard and mouse. Thus for example, a computer in a remote computing center can be operating via the EIZO system directly from OR.

Accessory - TIP - all - Video Management

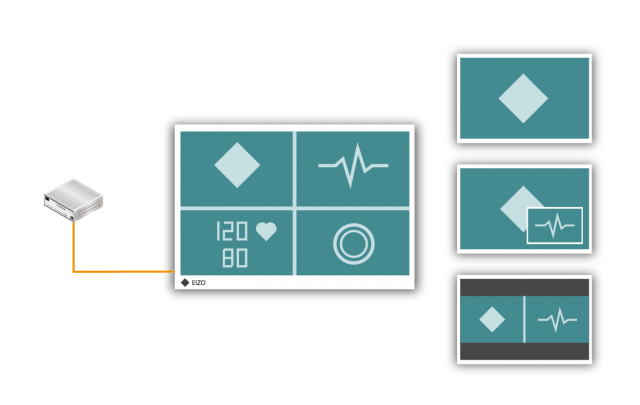

Integrated Video Management

Various video sources can be displayed simultaneously on a screen using a single cable. This enables various multiple views.

Passive Cooling

The IP Transceiver implements passive cooling for noiseless operation and minimal mechanical wear. This also eliminates any interference with the laminar flow in the OR to prevent unwanted movement of dust particles and bacteria.

Accessory - TIP - all - existing systems

Integration into Existing Systems

The IP Transceiver is compatible with a wide assortment of commercially-available network components and can be integrated into existing systems and applications.

Specifications

General

Cabinet Color	Silver
Certifications & Standards (Please contact EIZO for the latest information)	CE / UKCA, IEC/EN 62368-1, tested for IEC60601-1-2, RoHS, Reach, WEEE
Optional Accessories	Optical module (SFP+ 10G LC), power supply, connecting und mounting accessories

Network

Data Rate	10 Gbit/s
Connector	SFP+ (10 GbE, optional SFP+ module)
Cable	LWL duplex LC/LC (SFP+ module necessary)

Video Signals

Input Resolution	Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
Output Resolution	Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
Interface	HDMI® (in), HDMI (out)
Modes	Single In / Single Out (up to 4K/60Hz)
Multiview	Side-by-Side, Picture-in-Picture, QuadView
