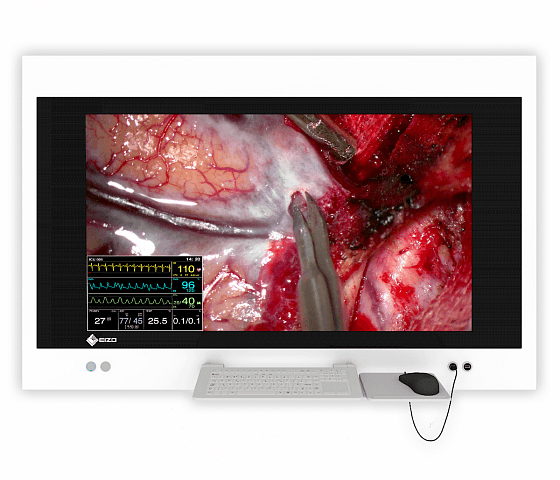

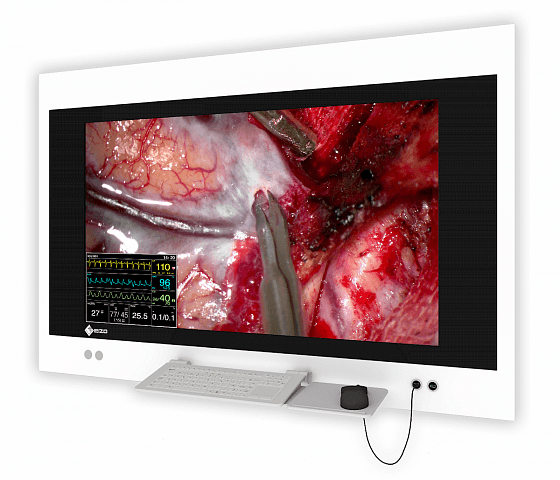

Surgical Panel SP1-49
Surgical Panel SP1-49

Surgical Panel SP1-49 Surgical Panel SP1-49

The Surgical Panel SP1-49 with integrated 49” monitor as well as build-in IT and video management components is a digital image viewing system, designed for use in the operating room. Integrated into the hospital’s IT structure, it supports various workflows. The SP1-49 provides the surgeon and his team with a perfect view also from remote locatios in the operating room.

  • Built-in 49” monitor (touchscreen option)
  • Workstation for image viewing
  • Space-saving wall mounting
  • High ease of service and maintanance
  • Flexible choice of material, configuration and accessories
  • Completely sealed within the OR and disinfectible

This product is not produced anymore, but may still be available from stock.
Please contact your sales partner for more information.

Features
Surgical Panel - Individually customized housing

Customized Housing

The housing dimensions of the Surgical Panel can be individually adapted to the conditions in the operating room. In addition, the housing color can be selected from the RAL color palette depending on the color concept on site.

Surgical Panel - Various monitors

Wide Ranging Monitor Options

The Surgical Panel are available in a wide range of screen diagonals for flexibly meeting local application requirements. The option to combine a viewing unit with a 24“ Full HD HIS workstation also offers a full viewing environment while saving on space.

Surgical Panel - Flexible IT and video management

Flexible IT und Video Management

The modular interior design allows customer-specific configurations and facilitates access for service and maintenance.

Surgical Panel - Dust and water proof

OR Integration and Cleanability

With its flat surface, the Surgical Panel can be completely sealed in the front and integrated in the OR wall, ensuring safety and simple cleaning and disinfection procedures. With intelligent heat distribution over the front surface, the units do not require specialized ventilation systems.

Surgical Panel - Easy Maintenance and Service

Easy Maintenance and Service

The hinged front allows easy access to the device without complicated disassembly or tools. With its unique locking system, no screws need to be taken out, making maintenance procedures on the installed components simple and efficient.

Surgical Panel - Different Mounting Options

Flexible Mounting Options

The device is designed for both surface or flush-mounted installation to allow easy fit into the local architectural preferences and physical circumstances on site.

Specifications

General

Model VariationsSP1-49: without touchscreen
SP1-49T: with touchscreen
Certifications & Standards (Please contact EIZO for the latest information)CE, IEC/EN 62368-1, IEC/EN 60601-1-2, RoHS, WEEE

Housing

MaterialPowder-coated stainless steel
FrontCombination of stainless steel and anti-reflective safety glass (ESG)
ColorAvailable in every RAL color
Mounting OptionsSuitable for flush mounting or surface mounting

Panel 49" (FHD)

Size49" (123 cm, 16:9 aspect ratio)
TypeColor TFT LCD Panel with DICOM Preset
Native Resolution1920 × 1080 (Full HD)
Display Colors1.07 billion colors
Pixel Pitch (H x V)0.559 mm x 0.559 mm
Brightness (typical)700 cd/m²
Contrast Ratio (typical)1300:1
Viewing Angles (H / V, typical)178º, 178º
TouchscreenProjected capacitive, multi-touch
(SP1-49T only)
Response Time (typical)8.0 ms (Midtone)
BacklightLED

Hardware & Software Components

IT Components (Expandable within the scope of the PC specification)INTEL® Core™ i5 processor - 3.x GHz, INTEL® Chipset, 6 MB L3 Cache, 8 GB DDR3 RAM (extendable), SATA HDD or SATA SSD, LAN RJ 45 - 10/100/1000 Base TX
Operating SystemMS Windows 10 Pro
Keyboard / MouseAnti-microbial medical silicone keyboard with integrated mouse storage (foldable), silicone mouse (visual 5 keys, laser mouse /IP65)

Power

Maximum Power Consumption271.5 W
Power Requirements100 - 240 V / 50 - 60 Hz / 4 - 2 A
Thermal Load977.4 kJ/h

Physical Specifications

Net Weightappr. 72 kg
Dimensions (mm)Niche (WxHxD): 1410x910x140
Device (WxHxD): 1400x900x120
Dimensions
Surgical Panel SP1-49
Downloads

Brochures

Single Product Brochure SP1-49

Single Product Brochure SP1-49

677.08 KB

download / open in browser

CuratOR Products

CuratOR Products

11.35 MB

download / open in browser

Manuals

Instructions for Use Surgical Panel

Instructions for Use Surgical Panel

411.05 KB

version 003, valid from 01/2020

download/ open in browser
