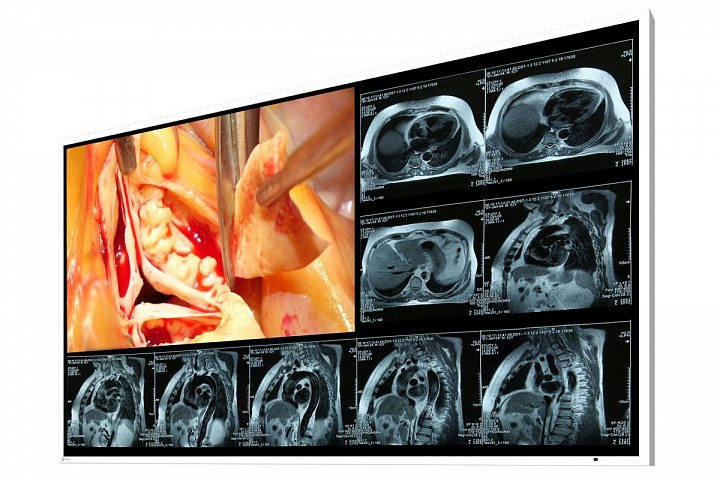

LX490WLX490W

This 49" widescreen monitor is ideal for viewing DICOM X-ray images or as a second monitor in surgical environments. Numerous input and output signals, the ability to combine pictures, and factory pre-calibrated gamma models enable usage in a wide range of applications. With its fanless construction and the watertight, easy-to-clean front surface, the monitor is perfectly suited to sterile hospital environments.

• Five factory-set DICOM and Gamma 2.2 lookup tables for optimal medical image reproduction
• Quick adaptation to different environments and procedures
• Numerous video inputs and outputs for increased connectivity
• Flexible image arrangement with "picture in picture" (PiP) and "picture and picture" (PaP) functions
• Fully automated brightness stability through ISS (Integrated Stability System)

This product is not produced anymore, but may still be available from stock.
Please contact your sales partner for more information.

Features

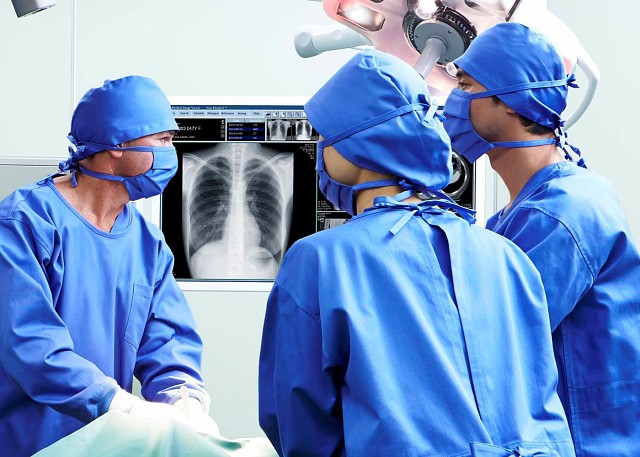

Monitor - LX49xW - Image Diagonal

Large Display Area

With an image diagonal of 49” and a resolution of 1920 x 1080 pixels, the monitor is suited for displaying different image sources simultaneously. For example, DICOM X-rays and endoscopic images can be shown side-by-side in the surgical environment. The large image diagonal makes the monitor ideal for mounting on the OP wall and viewing images from a greater distance. Images can be scaled full screen, reproduced in their original size, or displayed in or next to one another with the PiP and PaP functions.

Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, providing a clear view, especially when multiple people need to see the screen simultaneously.

Preset Look-Up Tables

The monitor is pre-calibrated in the factory. With five applicationoriented look-up table (LUT) presets and a user-configurable LUT function, the monitor is easy to install and maintain. It can be quickly adapted to the local viewing and lighting conditions or application preferences as needed.

Monitor - LX490W - Various Inputs

Numerous Video Inputs

The monitor can be connected to imaging systems via the various video inputs, such as DVI, HDMI, HD-SDI, Composite, S-Video and VGA. The monitor can be simultaneously connected to both digital and traditional video signals (PAL, NTSC, HD). If necessary, the video input settings can be adjusted using the OSD (On Screen Display) menu.

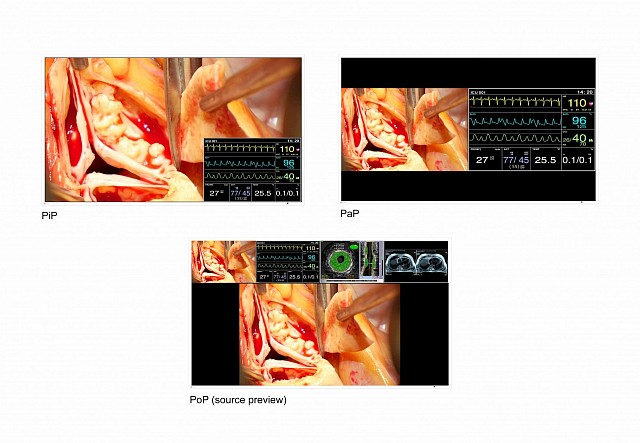

Monitor - LX49xW - PiP

Simultaneous Display of Different Image Sources

Thanks to the monitor’s widescreen format, the various input signals can be displayed in “picture-in-picture” (PiP) or side by side (PaP) orientations. This reduces the need for additional monitors, allowing users to view critical source image while simultaneously maintaining a view over other vital information.

Monitor - LX49xW - LED

LED Backlight

The monitor is equipped with an LED backlight that has been optimized for bright environments. LED technology offers a long lifetime expectancy even at high luminance settings.

Monitor - Quick Brightness Stabilisation

Stable Brightness and Instant Image Display

EIZO’s fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Monitor - LX49xW - Diagnostic Precision with Factory Adjustment

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent images possible, EIZO carefully measures and sets every tone on the production line to offer image quality tailored specifically to medical needs like gamma 2.2 and the DICOM Part 14 Standard.

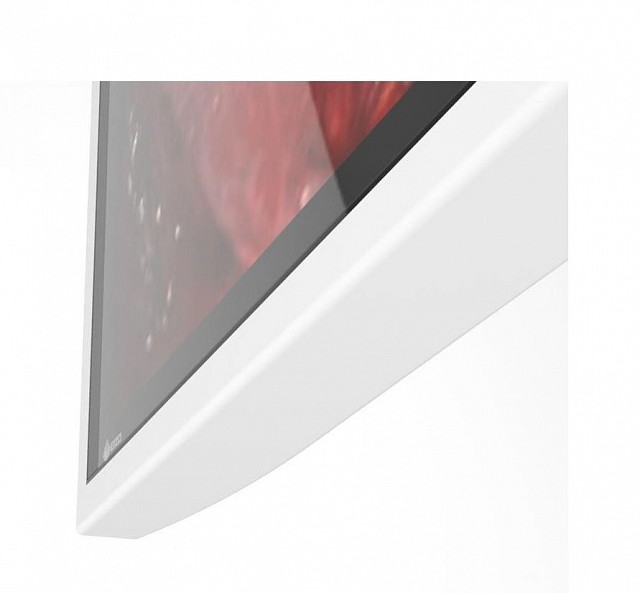

Monitor - EX271W - Safety Glass

Laminated Safety Glass for Easy Cleaning

The anti-reflective laminated safety glass ensures excellent image quality while protecting the monitor from scratch damage or liquid ingress during surgery or when cleaning and disinfecting the monitor.

Monitor - Fanless Silent Design

Fanless Silent Design

Engineered to dissipate heat without a fan, the monitor generates no distracting noises and does not circulate dust and germs or disturb the controlled laminar airflow within the operating room.

Specifications

General

Cabinet ColorBlack, White
Certifications & Standards (Please contact EIZO for the latest information)CE (Medical Device Directive), IEC/EN60601-1, EN60950-1, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, GB4943.1 (non-tropical, altitude<2000 m), FCC-B, RCM, RoHS, China RoHS, WEEE, CCC
Supplied Accessories (May vary by country. Please contact EIZO for details)AC power Cord (eu, us, jp, cn), signal cable (DVI-D - DVI-D), remote control, Utility Disk (PDF Instructions for Use)

Panel

TypeColor TFT LCD Panel (IPS)
BacklightLED
Size123 cm / 48.5" (1232 mm diagonal)
Native Resolution1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V)1073.8 x 604 mm
Pixel Pitch (H x V)0.55926 mm x 0.55926 mm
Display Colors10-bit colors: 1.07 billion colors
Viewing Angles (H / V, typical)178°, 178°
Brightness (typical)700 cd/m²
Contrast Ratio (typical)1300:1
Response Time (typical)8 ms (midtone)

Video Signals

Digital Scanning Frequency (H / V)30 - 91 kHz / 48 - 85 Hz
Analog Scanning Frequency (H / V)30 - 91 kHz / 48 - 85 Hz
Sync FormatsSync Separate, Composite Sync und SoG

USB

Downstream1 upstream, 2 downstream

Interface Specifications

Input TerminalsDVI-I x 1; HDMI x 1, BNC (HD-SDI) x 1, BNC (Composite) x 1, D-Sub mini 15pin (Separate Sync, Composite Sync, SoG*, YPbPr*, RGBS*, RGB/HV*) x 1, 4pin mini-Din (S-Video) x 1
*adapter (D-Sub mini 15pin - BNC) required
Output TerminalsBNC (HD-SDI) x 1, BNC (Composite) x 1, 4pin mini-Din (S-Video) x 1, D-Sub mini 15pin (VGA) x 1

Power

Power RequirementsAC 100 - 240 V / 50 - 60 Hz
Maximum Power ConsumptionMaximum: 144 W
Typical: 85 W
Power Save Mode19 W
Power ManagementDVI DMPM

Features & Functions

SensorBacklight Sensor
OSD LanguagesEnglish, German

Environmental Requirements

Degree of ProtectionFront: IP65
Rear: IP20

Physical Specifications

Net Weight (without Stand)31 kg
Hole Spacing (VESA Standard)200 x 400 mm, M8, depth 10 - 30 mm
Dimensions
