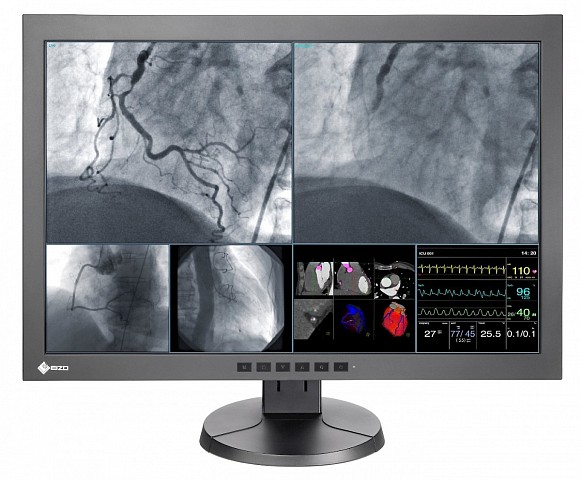

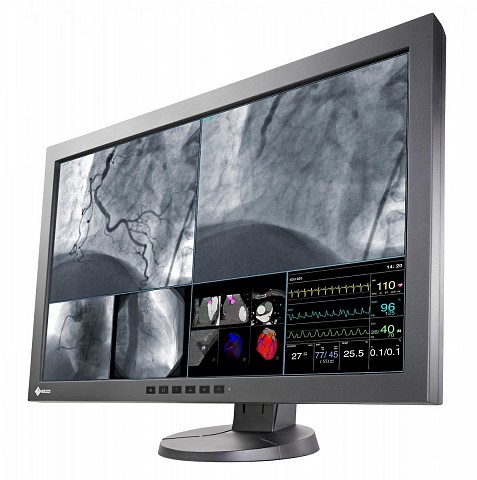

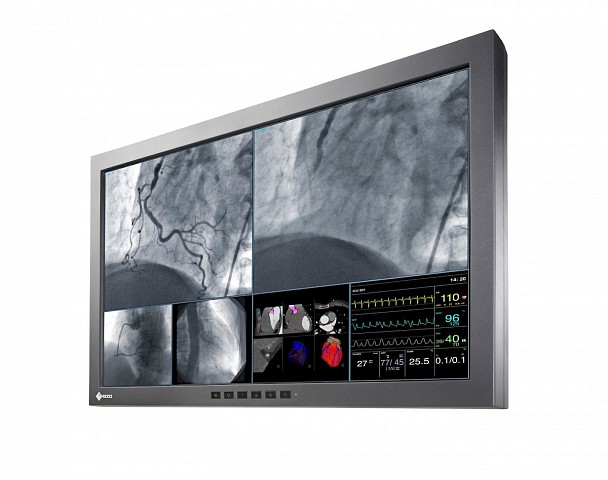

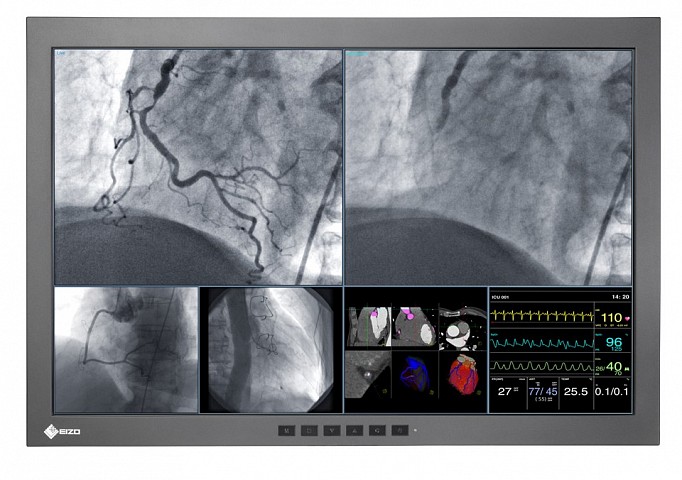

The 29.8-inch 4 megapixel monitor in widescreen format is designed for use in operating rooms (interventional radiology, cardiology, or surgery). It is a value for money solution for smaller examination and operating rooms where individual monitors increasingly are being replaced by large-format screens capable of displaying multiple image sources simultaneously.

  • Environmentally-friendly LED backlight offers a maximum brightness of 750 cd/m².
  • Intelligent cooling system controls the fan depending on the temperatur inside the monitor.
  • Fail-safe function displays additional video signal in case of interruptions in the system's image transmission.
  • Up to three video sources can be displayed simultaneously.
  • Flexible operating modes in landscape and portrait format.
  • Factory-adjusted grayscale tones to meet DICOM Part 14 standard for optimum viewing of medical DICOM imagess.
  • Five factory calibrated Look-up tables adaptable to diverse modality environments.

This product is not produced anymore, but may still be available from stock.
Please
contact your sales partner for more information.

Features
Monitor - Everything in a Single Glance

Everything in a Single Glance

Compared to solutions with multiple monitors, there are no regional color differences or obtrusive bezels between individual image sections on large screen monitors with high resolution, so that users can conveniently display important information on a single screen.
Monitor - Controlled Cooling

Controlled Cooling

The monitor features intelligent cooling concept by measuring and controlling the inside temperature. A mode without fan cooling is selectable so the controlled laminar airflow will be undisturbed within the room as far as possible.

Monitor - LX300W - Fail-Safe Function

Fail-Safe Function

Special fail-safe mode through DVI input for emergency information from the system for a certain timing. As soon as the timing is active, the information will be shown immediately on the upper left screen side.

Flexible Operation Modes

Up to three input signals can be displayed simultaneously. The images can be arranged side by side or as Picture in Picture (PiP), while image rotation is managed by the monitor.

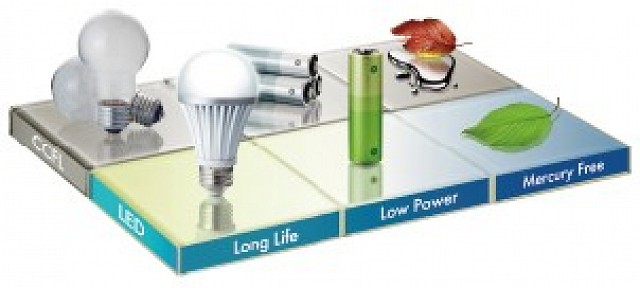

Monitor - Environmentally-Friendly LED Backlight

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves good brightness values with low power consumption. In contrast to conventional CCFL technology, LED backlighting offers a longer monitor lifespan, is free of hazardous materials, and is therefore compliant with current environmental regulations.

Communication Interface

The communication interface is routed via the DVI or USB connection. The operating states of the monitor can be read and switched via the interface, e.g. in Power Safe Mode. In particular, the monitor functionality can be queried using the interface.

LCD Panel Protector for Easy Cleaning

The panel protector secures the screen from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.

Monitor - Diagnostic Precision

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone at the factory for full compliance with DICOM® Part 14.

Monitor - Brightness Uniformity for Constant Brightness Across the Screen

Uniformity Across the Screen

LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen. EIZO’s patented Digital Uniformity Equalizer (DUE) technology corrects these deviations for a more uniform image.

Monitor - Quick Brightness Stabilisation

Stable Brightness and Instant Image Display

EIZO’s fully automated stability function uses an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Monitor - Comfortably View from Any Angle

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, providing a clear view, especially when multiple people need to see the screen simultaneously.

Monitor - Maintain the Precision

Maintain the Precision

Monitor calibration can be carried out to maintain DICOM Part 14 compliance for rendering consistency over time.

Monitor - Arm Mountable VESA Compliance

Installation on a VESA Mount

Compliance with the VESA standard enables attachment to existing mounting accessories, such as a ceiling suspension or wall fixture.

Customer Assurance with Medical Standards

The monitor meets the high requirements of itnernational medical safety and EMC standards.

Clear Image with I/P Conversion

To minimize motion artifacts that normally occur during interlace/progressive (I/P) conversion, this model detects the amount of change between images over time and applies the ideal amount of correction.

Specifications

General

Model VariationsLX300W: Without Stand
LX300W-S: With Stand
LX300W-P: Without Stand, with Panel Protector
Cabinet ColorBlack
Certifications & Standards (Please contact EIZO for the latest information)CE (Medical Device Directive), IEC/EN60601-1, CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, GB4943.1 (non-tropical, altitude<2000 m), UL60601-1, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC
Supplied Accessories (May vary by country. Please contact EIZO for details)AC power cord (eu, us, jp, LX300W-S only), dual link signal cable (DVI-D ~ DVI-D, LX300W-S only), Utility Disk (Instructions for Use)

Panel

TypeColor TFT LCD Panel (IPS)
BacklightLED
Size76 cm / 29.8" (756 mm diagonal)
Native Resolution2560 x 1600 (16:10 aspect ratio)
Viewable Image Size (H x V)641.0 x 401.0 mm
Pixel Pitch (H x V)0.2505 x 0.2505 mm
Display Colors10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)176° / 176°
Brightness (typical)750 cd/m²
Recommended Brightness for Calibration400 cd/m2
Contrast Ratio (typical)1100:1
Response Time (typical)20 ms (On/Off)

Video Signals

Input TerminalsDVI (dual link / single link) x 1, DVI (single link) x 1, HDMI (DVI-signal) x 1, DisplayPort x 1
Digital Scanning Frequency (H / V)31 - 100 kHz / 29.5 - 61 Hz
Frame synchronous mode: 59.5 - 60.5 Hz

USB

UpstreamUSB 2.0
Downstream1 upstream, 2 downstream

Power

Power RequirementsAC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption150 W
Power Save ModeLess than 20 W
Power ManagementDVI DMPM, DisplayPort 1.1a

Features & Functions

SensorBacklight Sensor
Digital Uniformity EqualizerYes
OSD LanguagesEnglish, German

Environmental Requirements

Degree of ProtectionIP20

Physical Specifications

Net WeightLX300W-S: 19.5 kg +/- 1 kg
Net Weight (without Stand)LX300W: 15.5 kg +/- 1 kg
LX300W-P: 18.5 kg +/- 1 kg
Hole Spacing (VESA Standard)200 x 100 mm and 100 x 100 mm, M4, depth 8 - 11 mm
