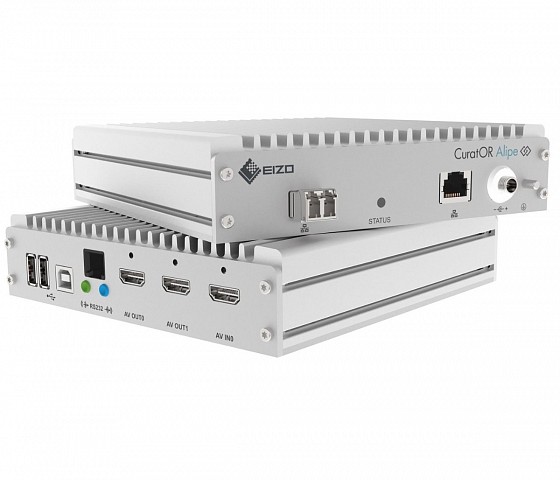

TIP0410

With TIP0410, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

Uncompressed, loss-free data transmission of 10 Gbit/s
Transmission with zero latency, for better hand-eye coordination
One device can be used as a decoder and encoder
Up to two video links per device can be processed
Multiple views on a monitor possible through one signal
Passive cooling

Features

Lossless Transmission

TIP0410 transmits data up to 4K UHD resolution at a frame rate of 30 Hz (up to 60 Hz with full HD resolution) with speeds as high as 10 Gbps. The device achieves this without compression and fully retains the color space, ensuring optimum image quality.

Instantaneous Image Viewing

Images are transmitted without any visual delay, offering a seamless hand-eye coordination experience for the attending physician. He/she receives direct visual response to his/her actions, for example during endoscopic interventions.

Accessory - TIP - all - Extended Distances

Extensive Transmission Distance

Data is transmitted via fiber-optic cable, enabling transmission distances of up to 10 kilometers. As a result, not only separate rooms, but entire buildings can be linked to one another, with image data and audio seamlessly transmitted between them. This is useful for transmitting data within and outside of the OR, as well as to conference rooms, lecture halls, and other locations.

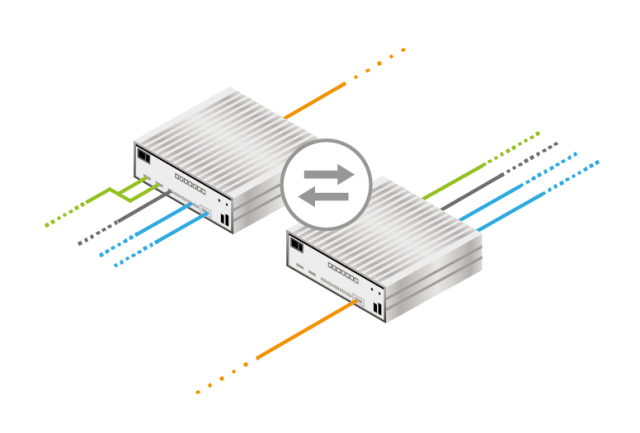

Universal Application

The IP Transceiver can be used simultaneously as an encoder and decoder. This simplifies installation and saves on time and labor costs associated with storage and maintenance of the entire system.

Two Signals Simultaneously

Up to two video links can be processed concurrently with one TIP0410. At the same time, a video signal can be fed in via the HDMI input in the network and another signal can output from the network via one of the two HDMI outputs. With a connected full HD signal, this can also be looped through to one of the HDMI outputs.

Accessory - TIP - all - Mouse and Keyboard

Remote Operation Possible

IP-based data transmission enables the use of the same network cables for the transmission of all information, whether image, audio, video, or control of a keyboard and mouse. Thus for example, a computer in a remote computing center can be operating via the EIZO system directly from OR.

Accessory - TIP - all - Video Management

Integrated Video Management

Various video sources can be displayed simultaneously on a screen using a single cable. This enables various multiple views.

Passive Cooling

The IP Transceiver implements passive cooling for noiseless operation and minimal mechanical wear. This also eliminates any interference with the laminar flow in the OR to prevent unwanted movement of dust particles and bacteria.

Accessory - TIP - all - existing systems

Integration into Existing Systems

The IP Transceiver is compatible with a wide assortment of commercially-available network components and can be integrated into existing systems and applications.

Specifications

General

Cabinet Color	Silver
Certifications & Standards (Please contact EIZO for the latest information)	CE / UKCA, IEC/EN 62368-1, tested for IEC60601-1-2, RoHS, Reach, WEEE
Optional Accessories	Optical module (SFP+ 10G LC), power supply, connecting and mounting accessories

Network

Data Rate	10 Gbit/s

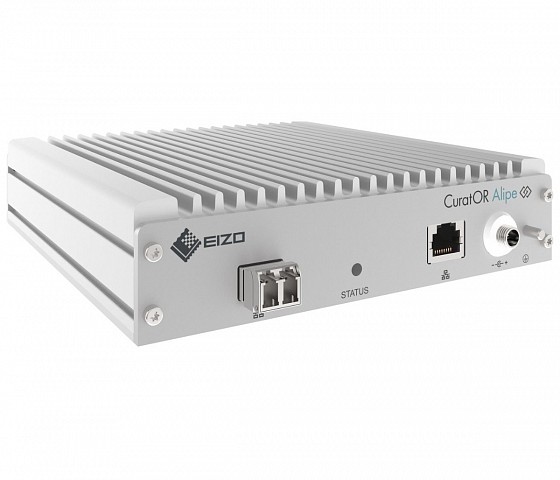

Connector	SFP+ (10 GbE, optional SFP+ module)
Cable	LWL duplex LC/LC (SFP+ module necessary)

Video Signals

Input Resolution	Up to FHD (1920 x 1080) and WUXGA (1920 x 1200), 1 x uncompressed, 60 Hz and 30 Hz, progressive and interlaced Up to 4K (3840 x 2160), 1 x uncompressed, 30 Hz
Output Resolution	Up to FHD (1920 x 1080) and WUXGA (1920 x 1200), 2 x uncompressed, 60 Hz and 30 Hz, progressive Up to 4K (3840 x 2160), 1 x uncompressed, 30 Hz

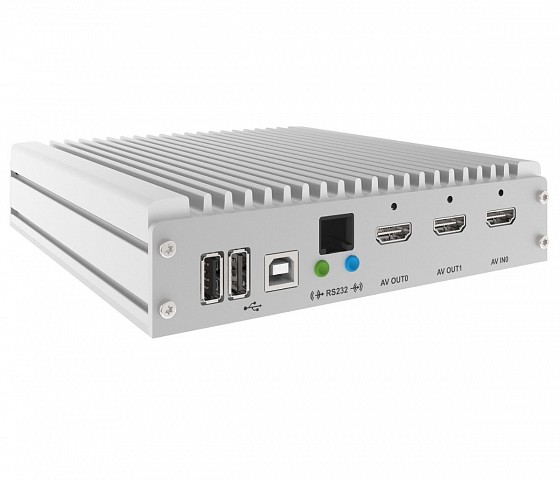

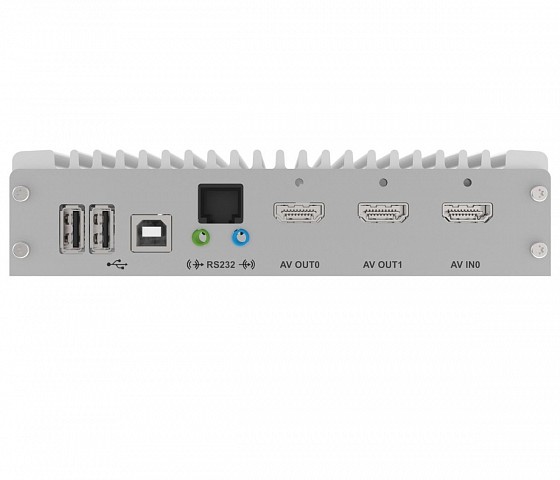

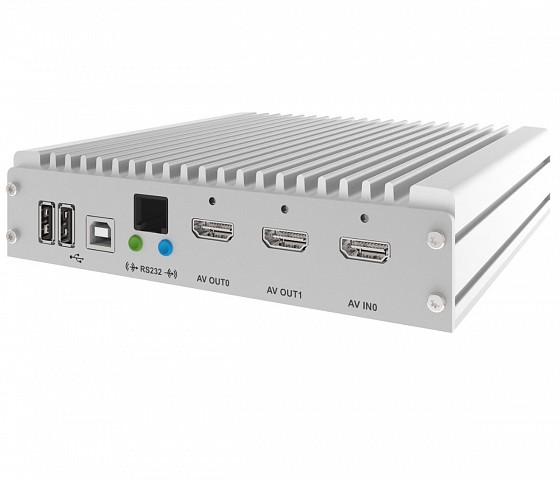

Interface	HDMI 1.4 (in), HDMI 1.4 x 2 (out)
Modes	Single In / Single Out (up to 4K/30Hz), In/Out (up to 4K/30Hz), Dual Out (up to FHD and WUXGA), Loop Through (up to 4K/30Hz)
Multiview	Side-by-Side, Picture-in-Picture, QuadView, 3+1 and 1+3 Right
